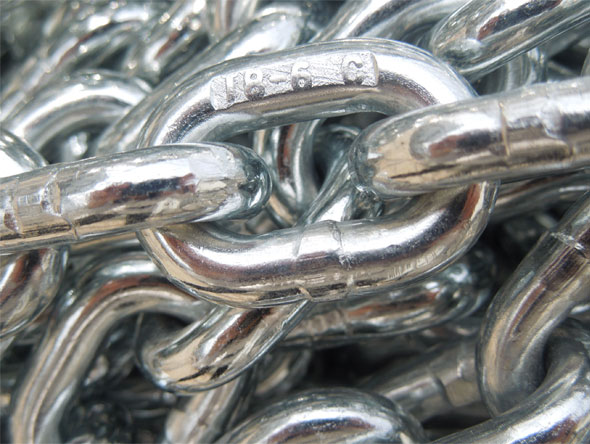

G80級鍍鋅起重鏈條

2017-08-21 15:58:53

Size dxp (mm)	Width		Approx Weight (kg)	Test Load(KN)	Test Load (KN)	Breaking Load min(KN)
Size dxp (mm)	Inside min (mm)	Outside max(mm)	Approx Weight (kg)	Test Load(KN)	Test Load (KN)	Breaking Load min(KN)
6x18	7.5	21	0.79	1.1	27	45.2
7x21	9	24.5	1.07	1.5	37	45.2
8x24	10	28	1.38	2	48	61.6
10x30	12.5	35	2.2	3.2	76	80.4
11x43	12.6	36.5	2.33	3.8	92	125
12x36	15	42	3.1	4.6	109	154
12.5x38	15.5	42.2	3.3	4.9	117	181
13x39	16.3	46	3.8	5	128	196
14x42	18	49	4.13	6.3	150	214
14x50	17	48	4	6.3	150	250
15x46	20	52	5.17	7	168	280
16x48	20	56	5.63	8	192	320
16x49	24.5	59.5	5.71	8	192	320
16x64	23.9	58.9	5.11	8	192	320
18x54	23	63	6.85	10	246	410
18x64	21	60	6.6	10	246	410
19x57	23.7	63.2	7.7	11.3	270	450
20x60	25	70	8.6	12.5	300	500
22x65	28	74.2	10.7	15.3	366	610
22x66	28	77	1.2	15.3	366	610
22x86	26	74	9.5	15.3	366	610
24x72	32	82	12.78	18	432	720
24x86	28	79	11.6	18	432	720
26x78	35	91	14.87	21.3	510	850
26x92	30	86	13.7	21.3	510	850
30x90	38	105	19.6	28.3	678	1130
30x108	34	98	18	28.3	678	1130
32x96	40	106	22.29	32.2	772	1286
34x126	38	109	22.7	36.3	870	1450
34x102	46.5	121.5	25.5	36.3	870	1450
36x108	49.5	128.5	31	40.7	978	1630
38x137	42	121	29	45.3	1086	1810
38x114	52	136	32	45.3	1086	1810
42x126	55.5	144.5	38.6	55.4	1332	2200
